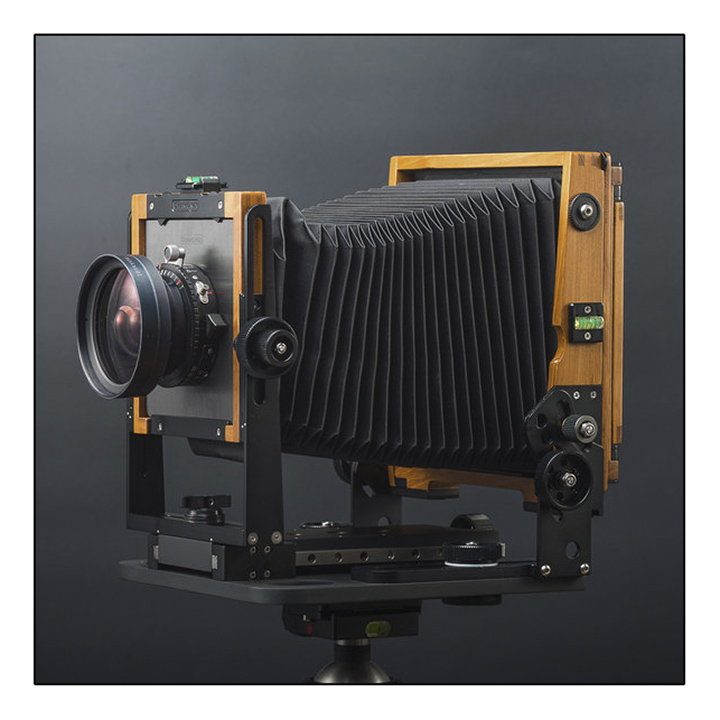

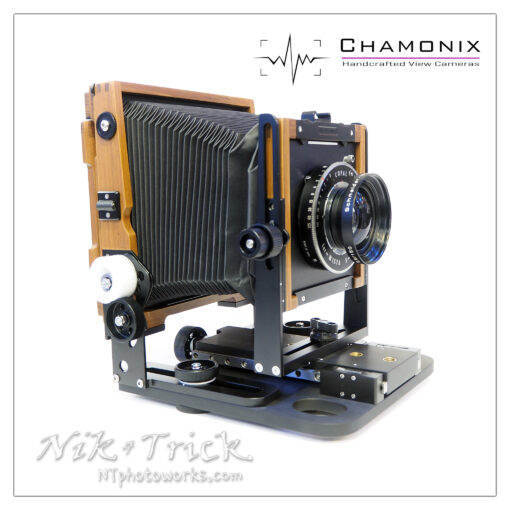

Chamonix 45F2 5×4 Field Camera ~ The Most Sought After Model in the Range!

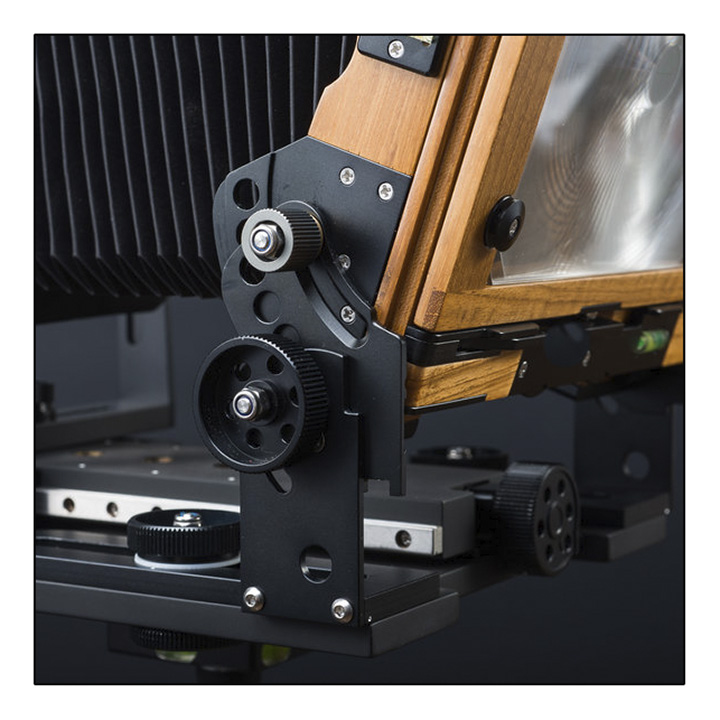

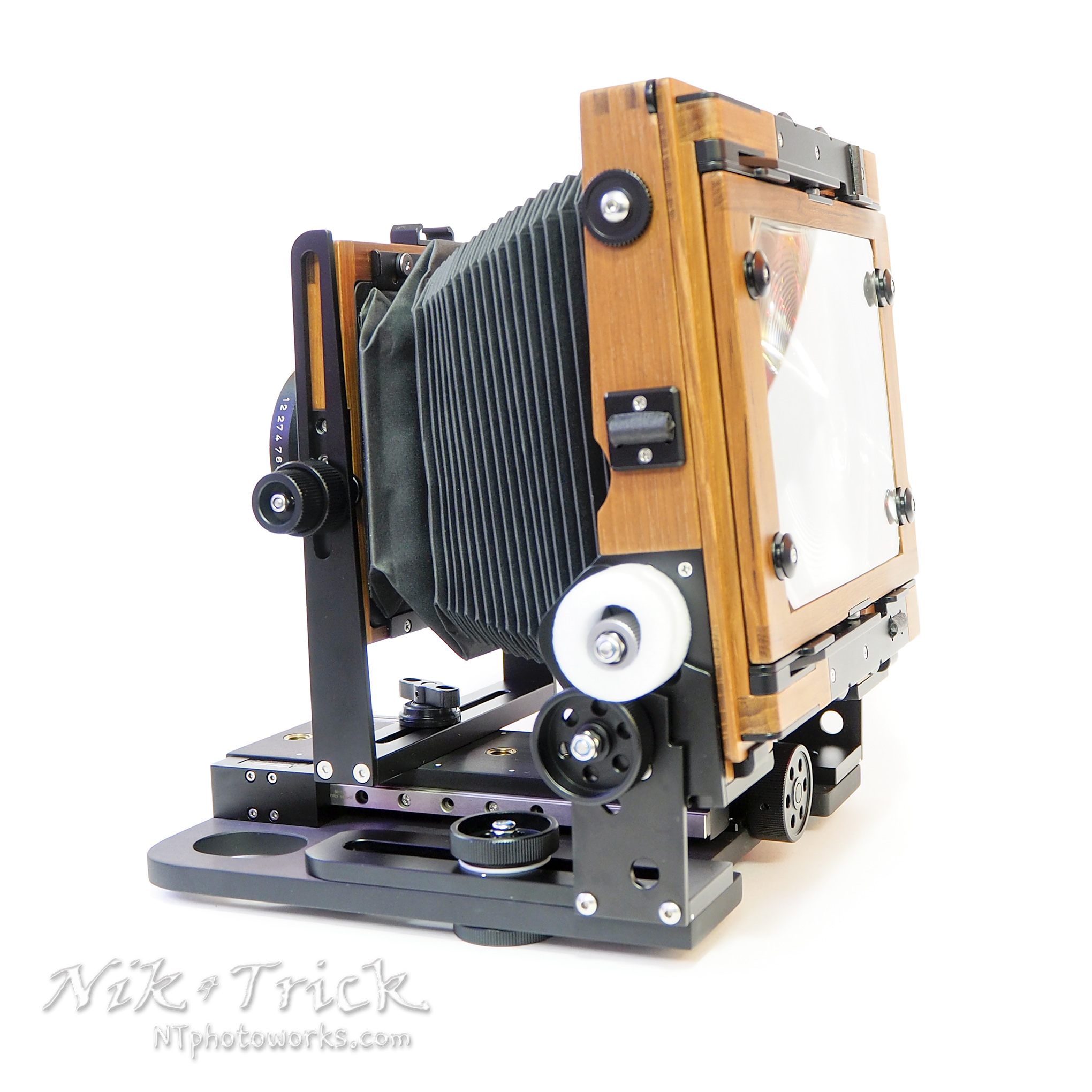

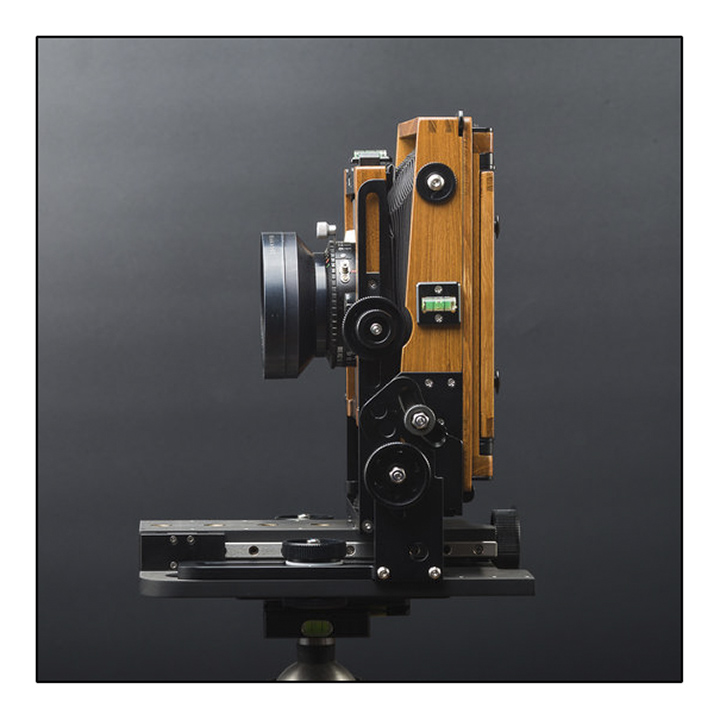

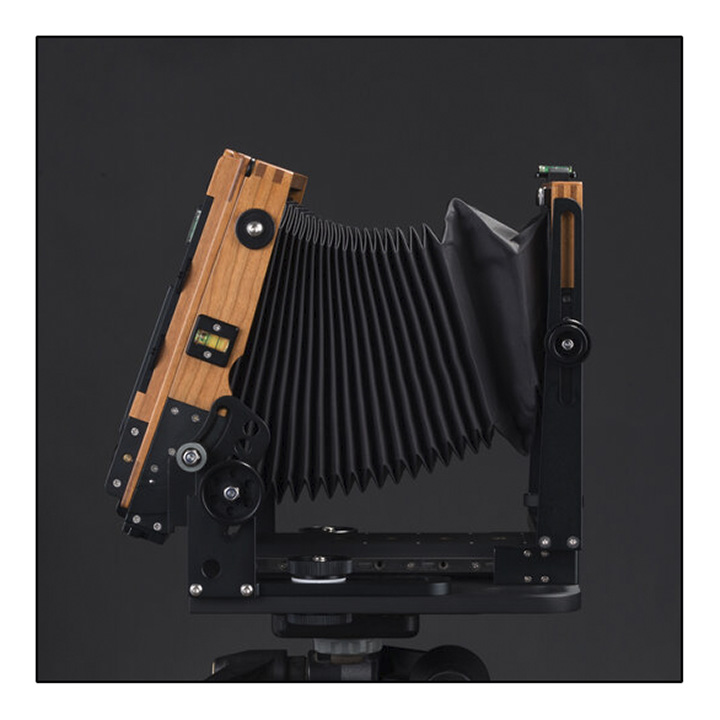

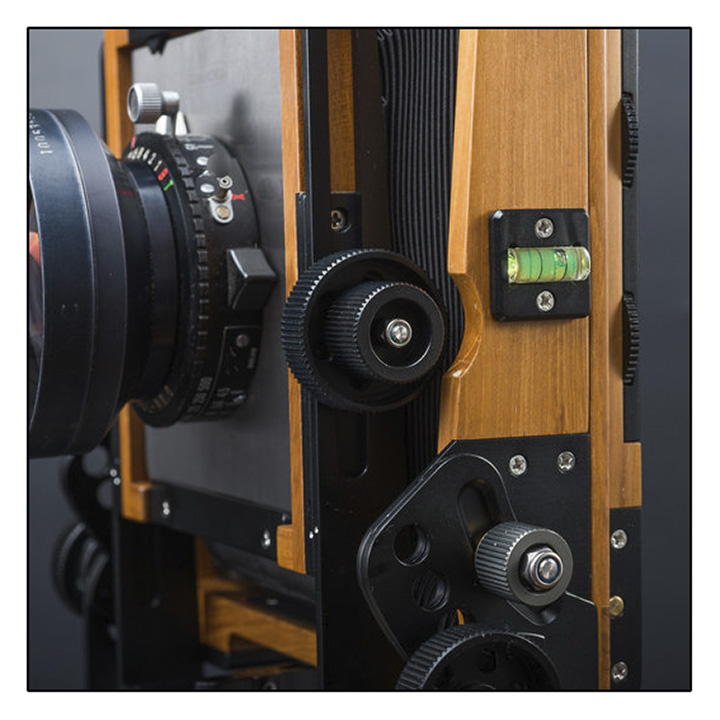

Chamonix 45F2 5×4 Field Camera has base and asymmetrical tilts of the rear standard are controlled by a single knob on the standard, they remain locked when not in use and when it is needed it can be unlocked with a simple twist of the fingers. This knob has a special pale gray coating to differentiate it from other knobs, making it easy to find and quickly add adjustments.

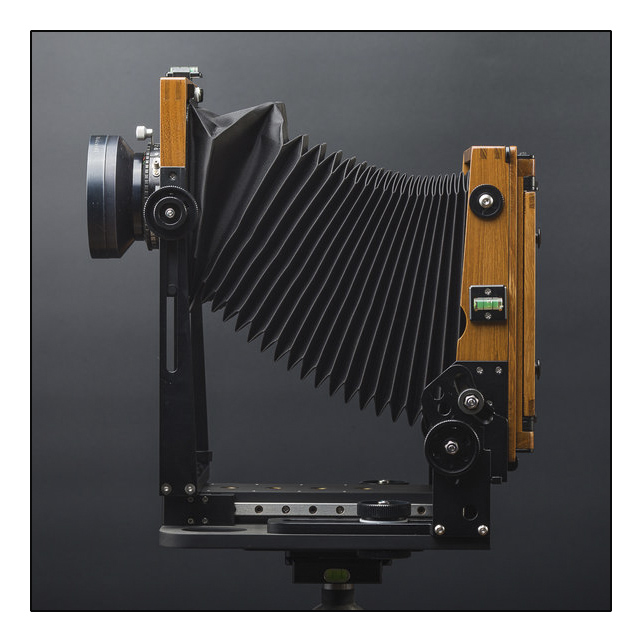

The design of 45F-2 camera retains the improvements of the 45F-1, such as the wider base and narrow top of the rear standard. This profile makes the control of the base and asymmetrical tilts highly visible. The design also increases the rigidity of the standard.

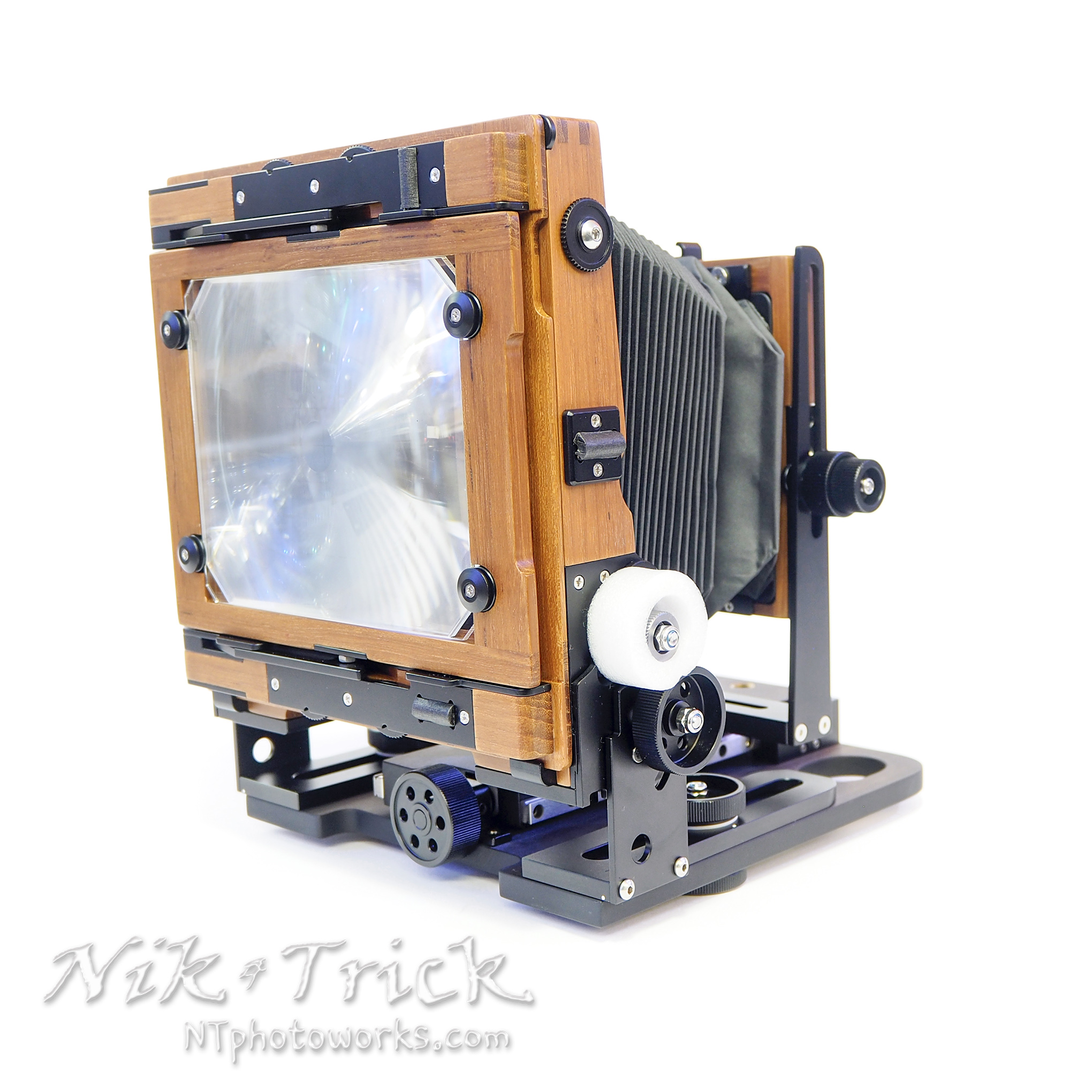

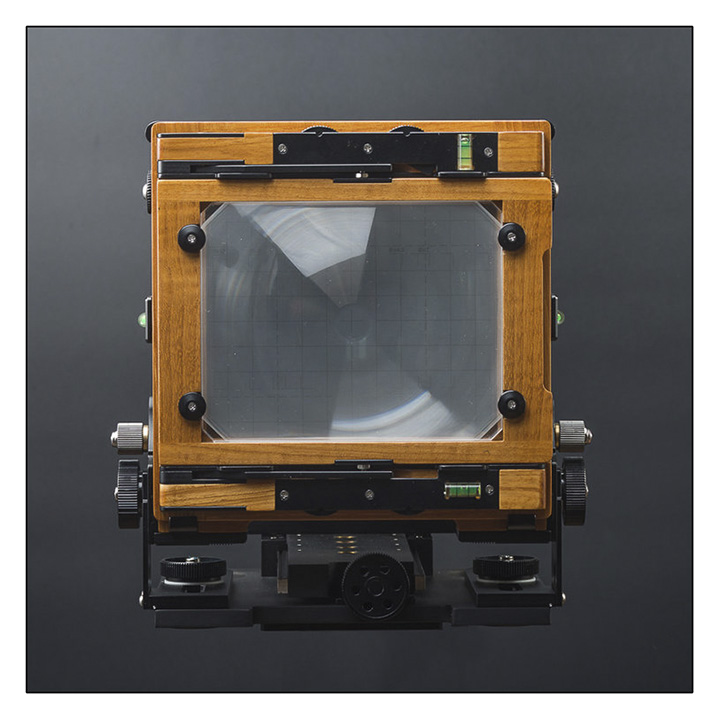

The 45F-2 camera has a special ground glass with four dotted lines. No matter which way the ground glass faces–in landscape or portrait orientation–an object placed on the dotted line on the ground glass will stay in focus as rear tilt is applied.

45F2 camera can be used with all of 45 accessories: extension board, folding and reflex viewers, leather jacket.

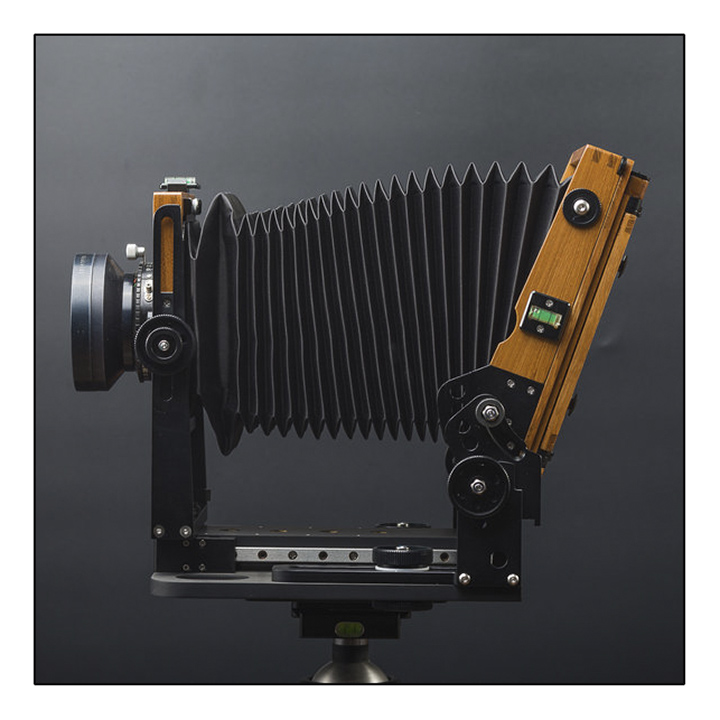

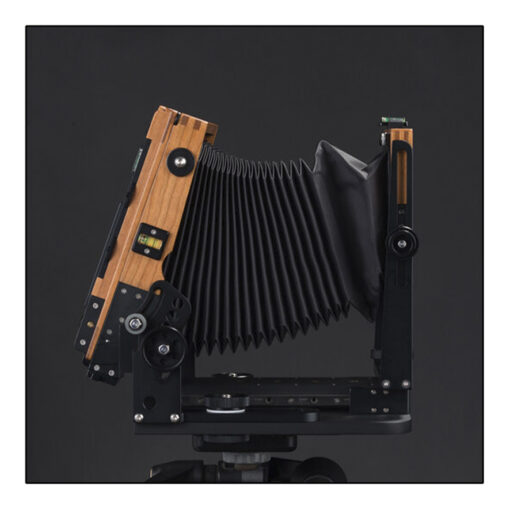

The main difference between 45F-2 and 45N2 cameras is the base and asymmetrical tilts of the rear standard. This feature makes the camera much easier to use when applying the Scheimpflug principle in compositions involving landscape and architecture photography.

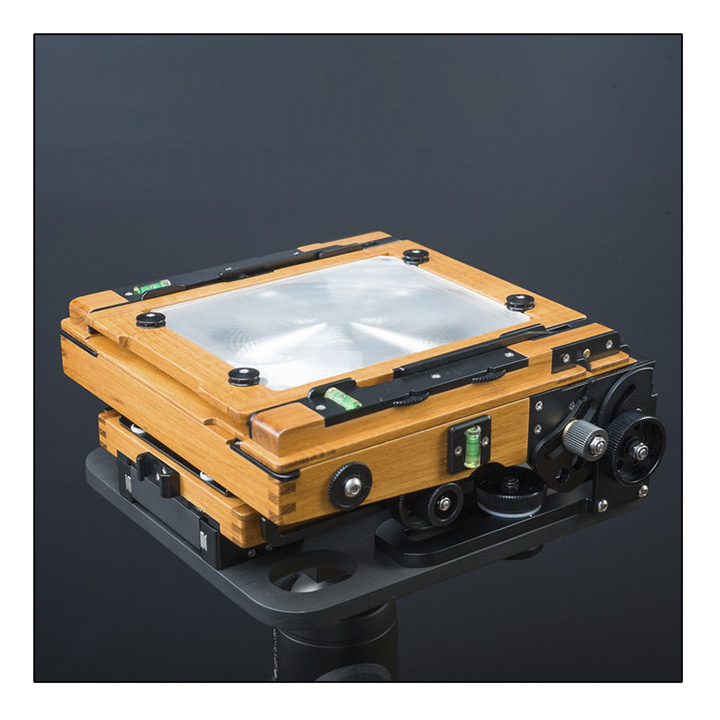

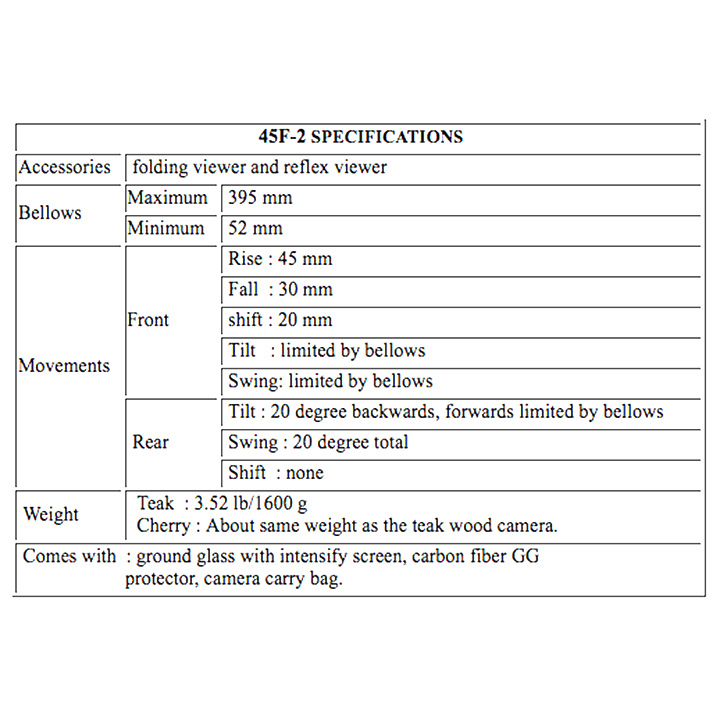

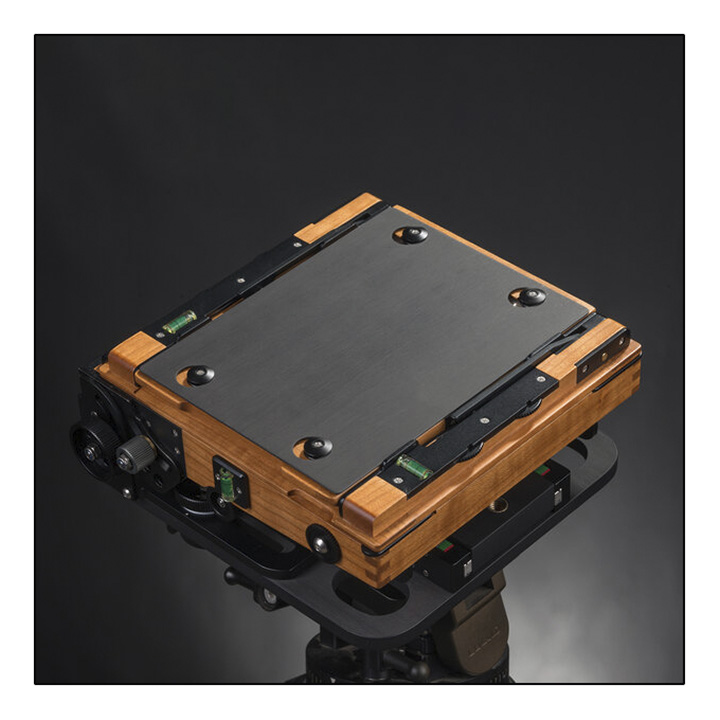

The dimensions of the 45F-2 when folded are 208 x 182 x 92 mm (approx.8.2 x 7.2 x 3.6 in). The 45F-2 weighs 1600 g (3.52 lb).

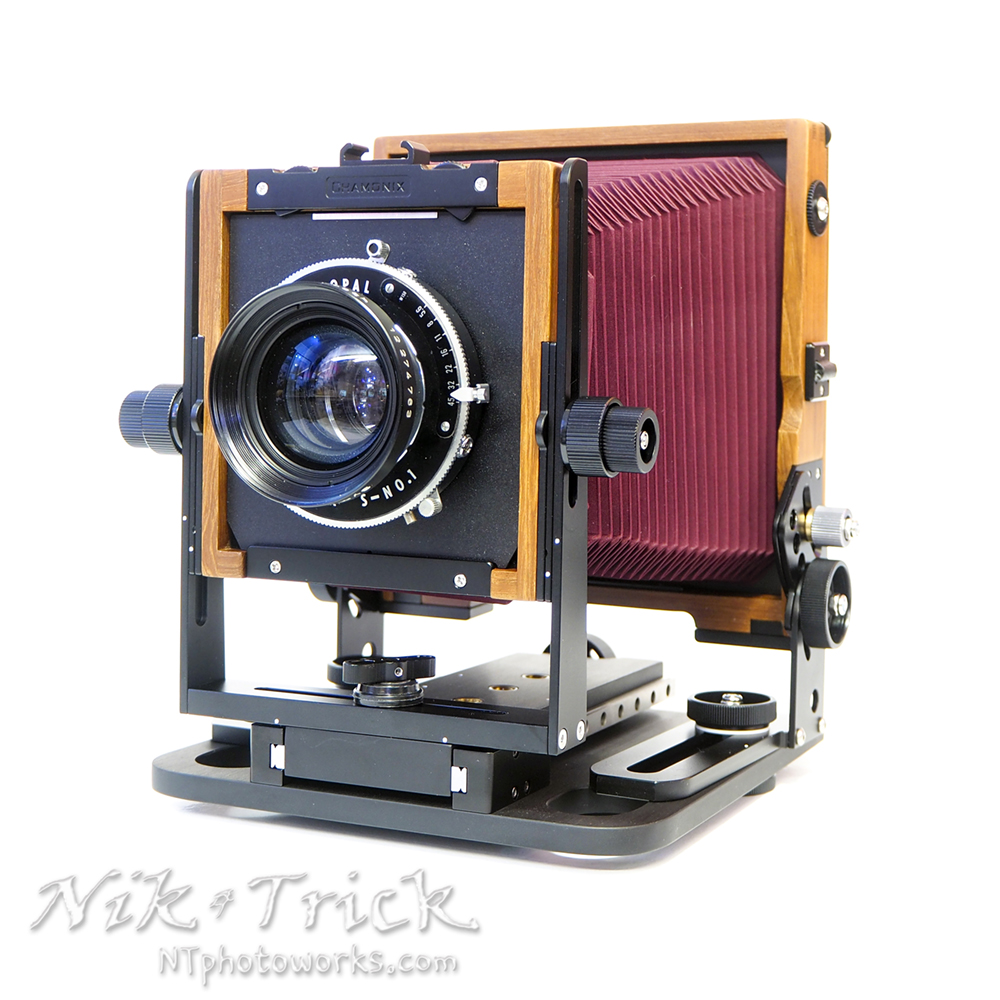

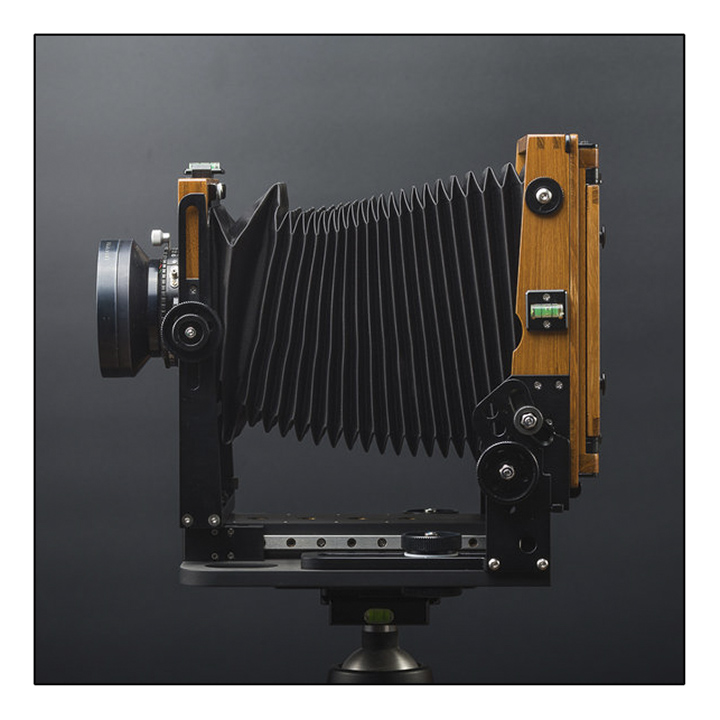

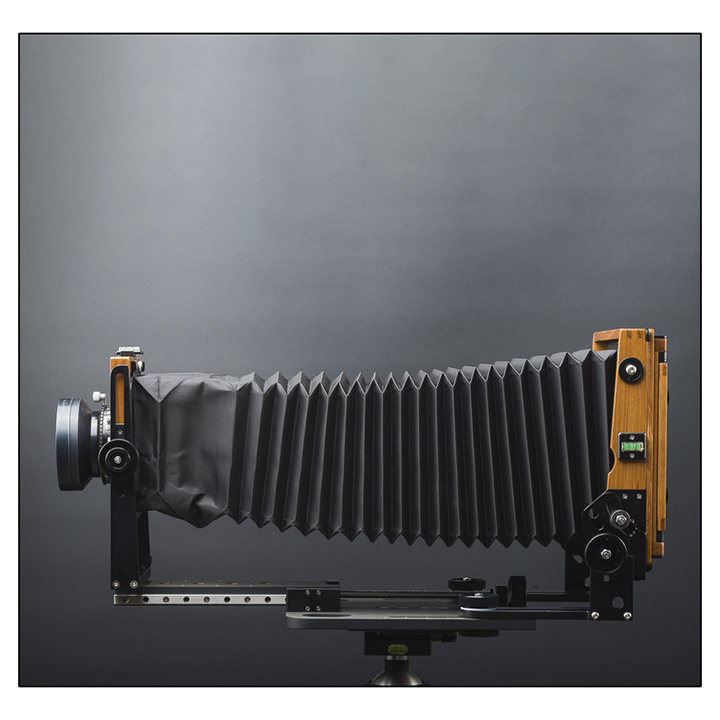

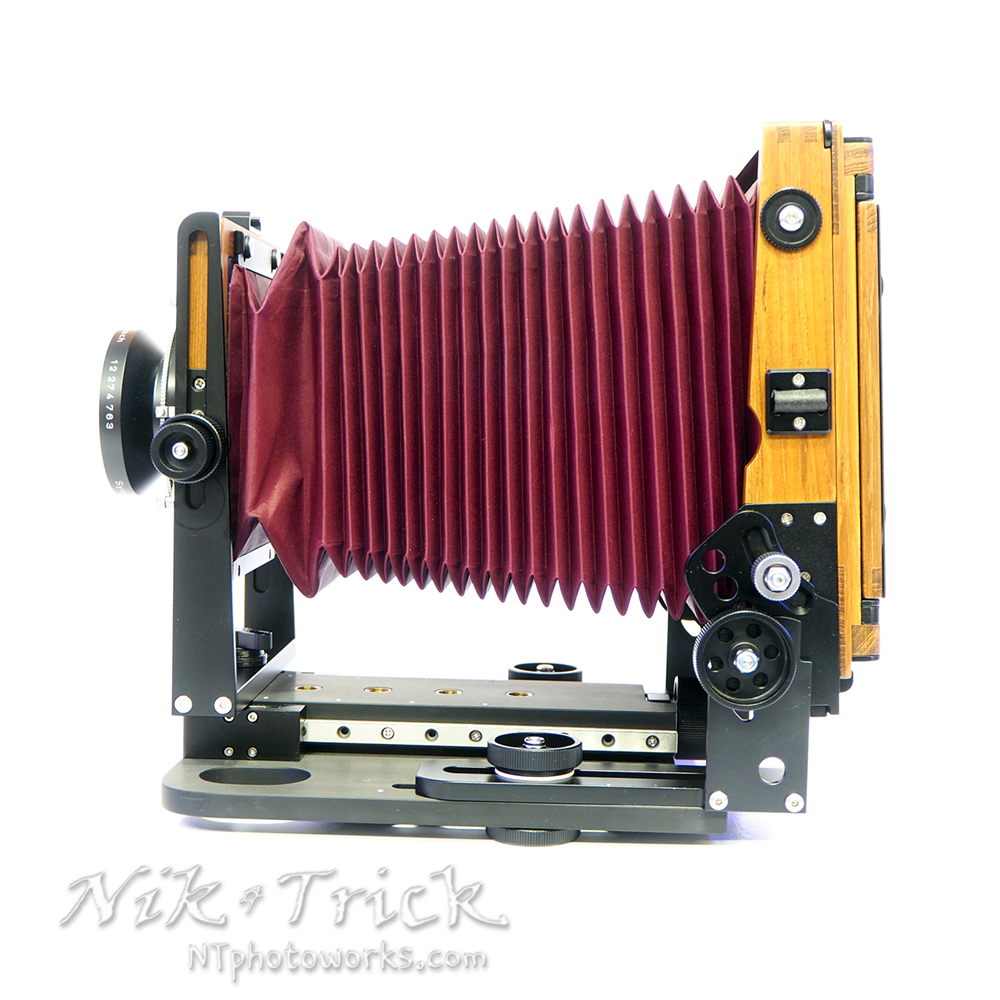

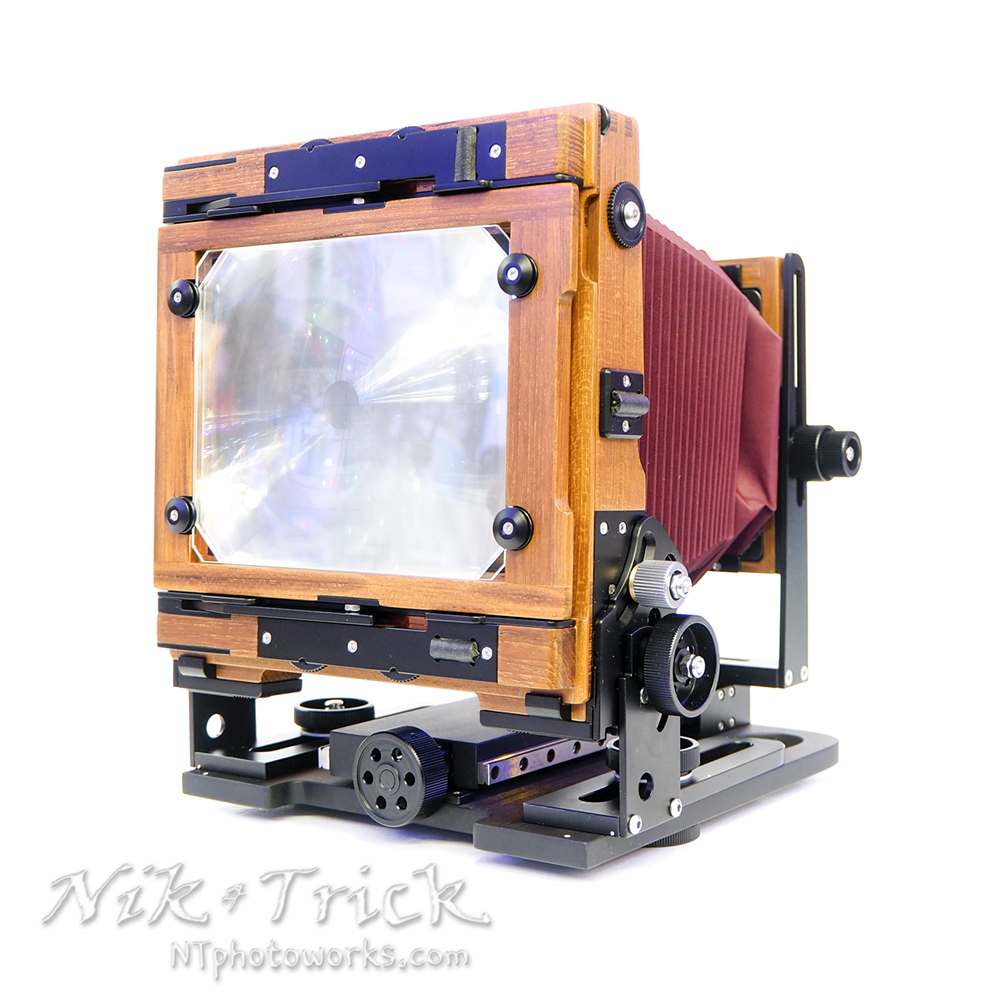

The Chamonix 45F2 5×4 Field Camera comes with a universal bellows in either black or red and a Fresnel lens. It also comes with a black carry bag.
