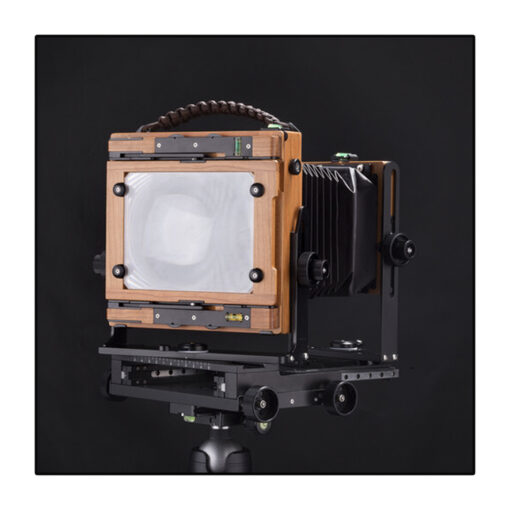

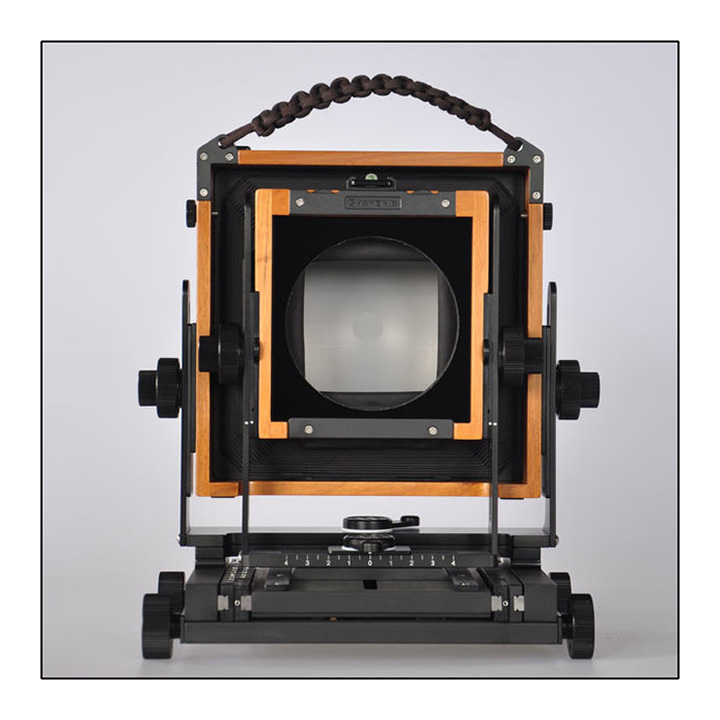

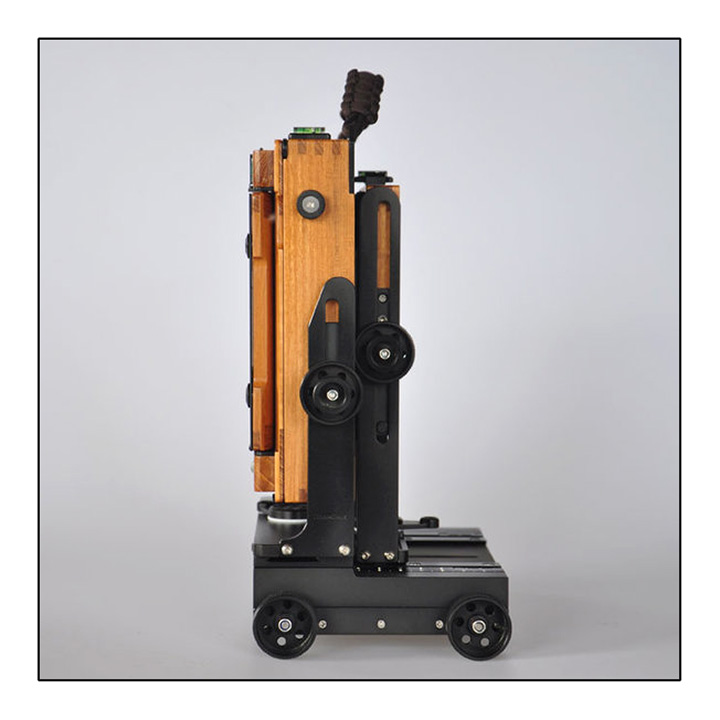

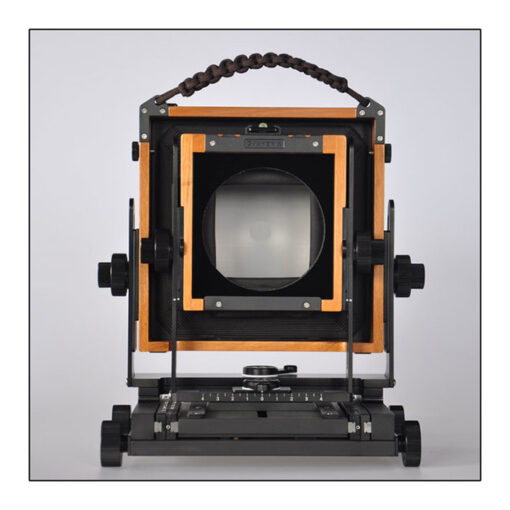

Chamonix 4x5H Series 5×4 Field Cameras ~ Lightweight, Fast Setup, Tough Construction

Chamonix 4x5H Series 5×4 Field Cameras need a  few pointers regarding the use heavy lenses:

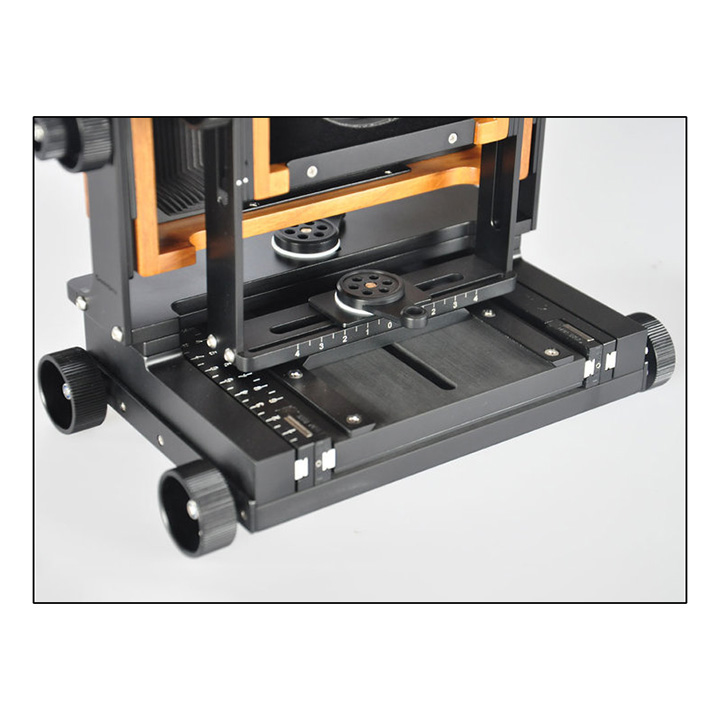

1. Our 45H-1 and 45Hs-1 cameras are designed differently than our 45N-2 and 45F1 cameras. To increase the precision of the camera, we have used a linear focus track. A side effect of this feature is low friction in the camera bed, especially when the camera is tilted with a heavy lens.

2. You may consider using the following two steps to focus when your camera is not in a level position.

The first step: Loosen all the knob locks and use only your eyes (without a loupe) for the initial composition and focusing, then tighten the focus knob locks half way gradually.

The second step: Keep the locks half tightened as it is the only way the focus knobs maintain enough friction. Then use a loupe for fine focus and completely tighten the focus locks after the focus process is finished. Please remember to use one hand to hold the focus knob while the other hand is used to tighten the focus locks, otherwise slight focus shift will occur due to the worm effect of the screw-focus feature.

These are special cameras, they are hand made in low numbers and may take some weeks to acquire if ordered though we shall try to have the occasional one ready in stock.

When ordered through us a 100% deposit will be payable up front…but you’s expect no less!
