Chamonix Mid-Sizes of Large Format Cameras

Chamonix Mid-Sizes of Large Format Cameras are all made by hand and are available to Nik & Trick to order.

For the 5×7 format, perhaps in many ways the optimum format, Chamonix produces 3 models: 57N, 57Fs-2, and 57W-d. The 57N is a horizontal-only model for photography in landscape orientation.

The 57Fs-2 and 57W-d models have convertible backs for photography in either landscape or portrait orientation and those are what we are lising here.

Chamonix cameras in the 57 series are made with teak. The metal parts–front/rear standards and small parts–are painted black to compliment the color of the carbon fiber components of the camera.

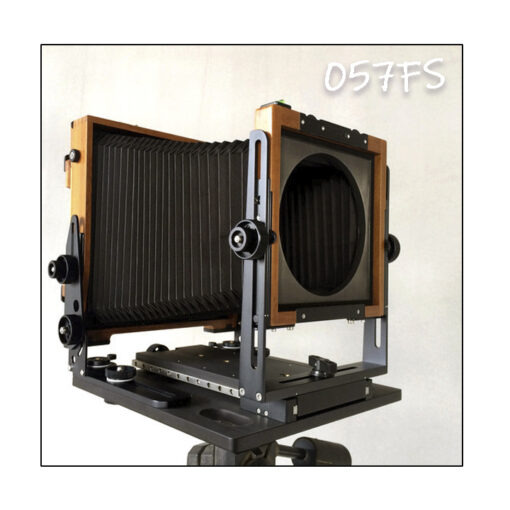

The Chamonix 57Fs-2 view camera comes with a Graflox adapter that will also accept a 617 roll film back. The 57Fs-2 camera uses Sinar-type lens boards. This should be the camera of choice for landscape and architecture photographers and features asymmetrical tilts of the rear standard.Weight: 2,780 grams

Rise: 72mm, Fall: 24mm ~ Front shift: left: 50mm, right: 50mm ~ Front tilt: 30° front and back

Rear standard：swing :10° left and right ~ Rear rise: 45mm ~ Rear tilt：30° front and back

Asymmetrical tilt: 20° front and back ~ Rear standard forward：80mm

Bellows draw: :max: 530mm (680mm with extension board), min: 55mm

Folded size: ：290mm X 239.3mm X 103.5mm

It comes with a black carry bag.

The Chamonix 57W-d view camera is designed for wet plate use. It can be used with a Chamonix 58 back with a 5×8 film holder, as well as a 8×8 focus frame with a 8×8 wet plate holder. The 57W-d camera uses Sinar-type lens boards.Focus Frame and Wet Plate Holders are available from us separately.

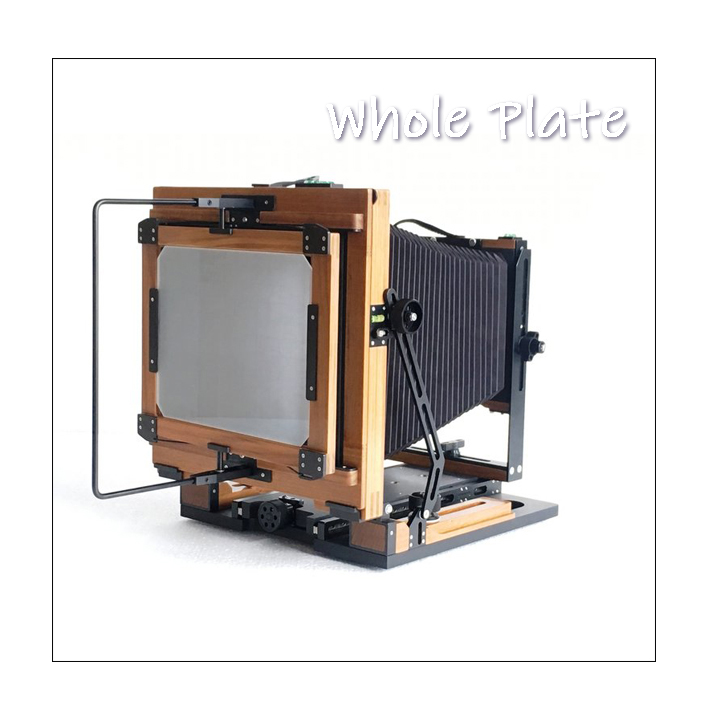

The Chamonix Whole Plate (WP) uses the classic format–6.5×8.5 inches that has such a long history and enjoys special affection among photographers using platinum and other alternative processes.Chamonix WP cameras are primarily designed to meet the need of such photographers desiring a light-weight modern camera. The cameras are made with teak and lightweight, high-density carbon fiber. The latter is mainly used for the camera base plates to ensure the stability and rigidity of the cameras.

Chamonix WP cameras are handmade following very strict procedures. All wood parts are hand varnished and polished. Each coat is applied to the wood and allowed to dry naturally before another coat is applied. This procedure is repeated 12 times and takes 90 days from start to finish. The result is worth the time; when finished, a Chamonix view camera glows.

The metal parts of the Chamonix WP camera are anodized aluminum with a black finish. Note that the front standard takes Sinar-type lens board.

These are ultra special cameras, they are hand made to order only and may take some weeks to acquire.

They can be ordered through us with 100% deposit payable up front….due to the nature of the construction of these wonderful cameras prices are on aplplication only!
