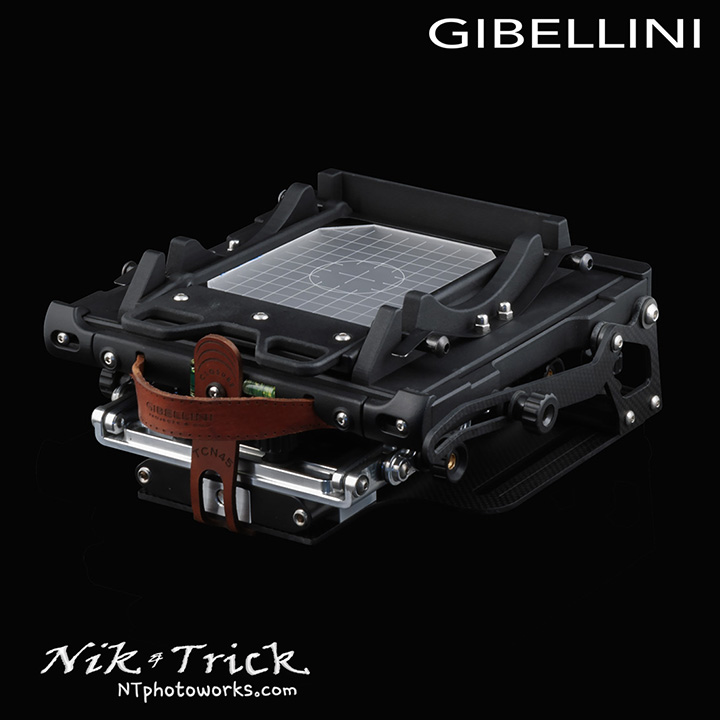

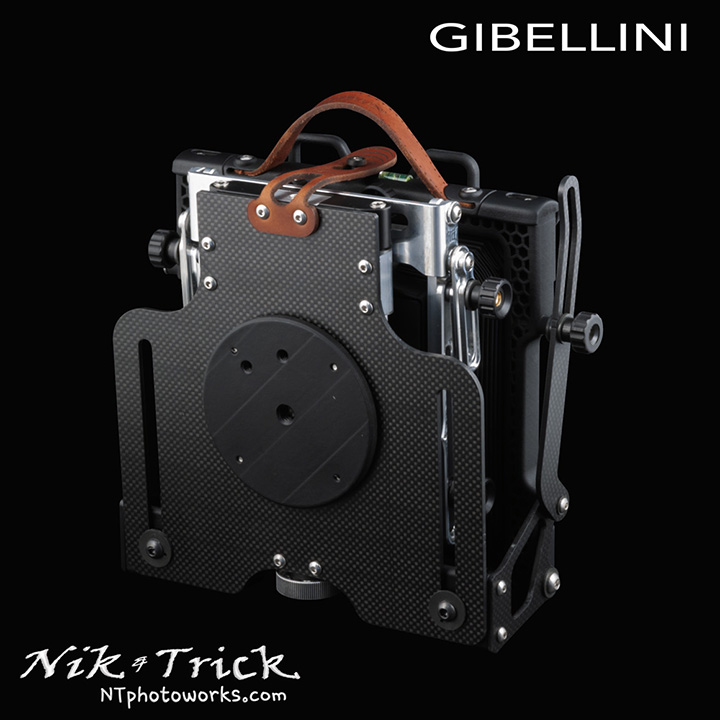

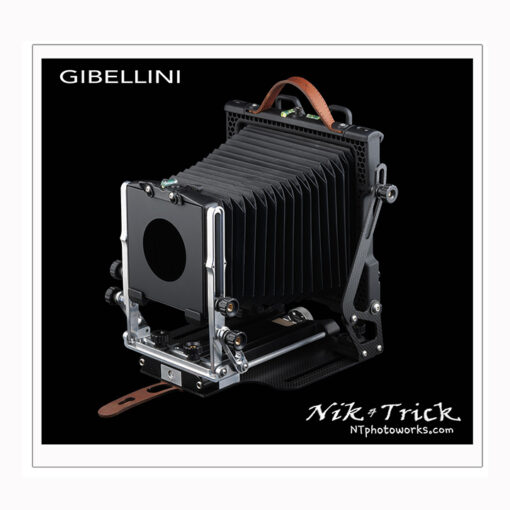

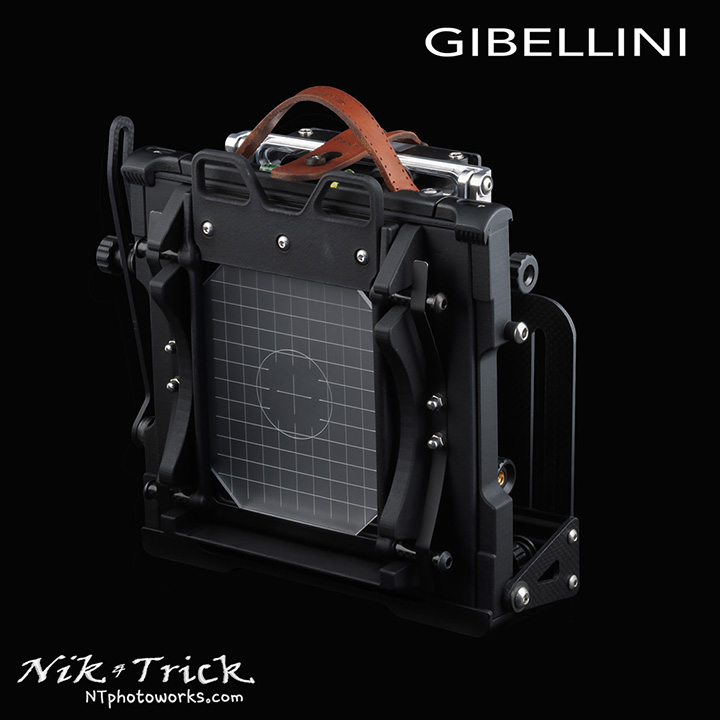

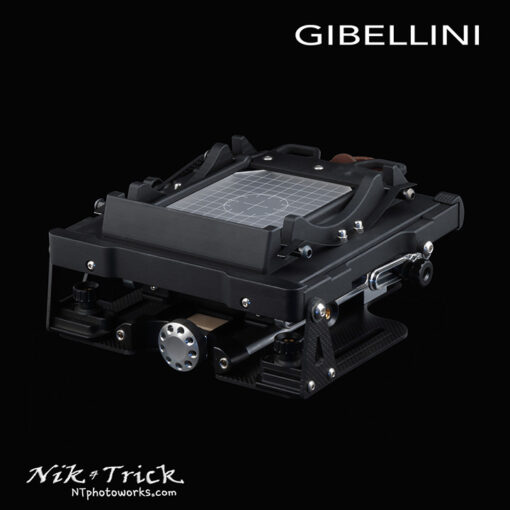

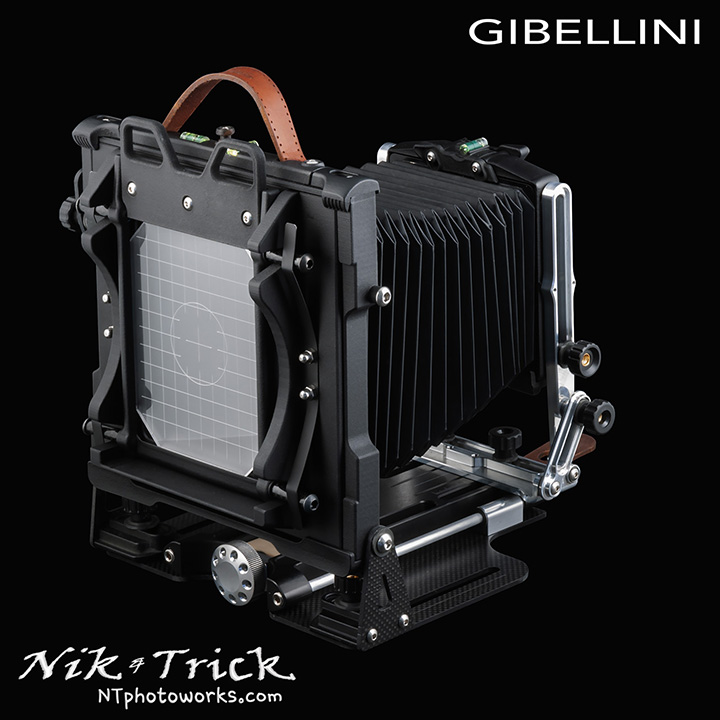

Gibellini TCN45 Customisable 4×5 Field Camera

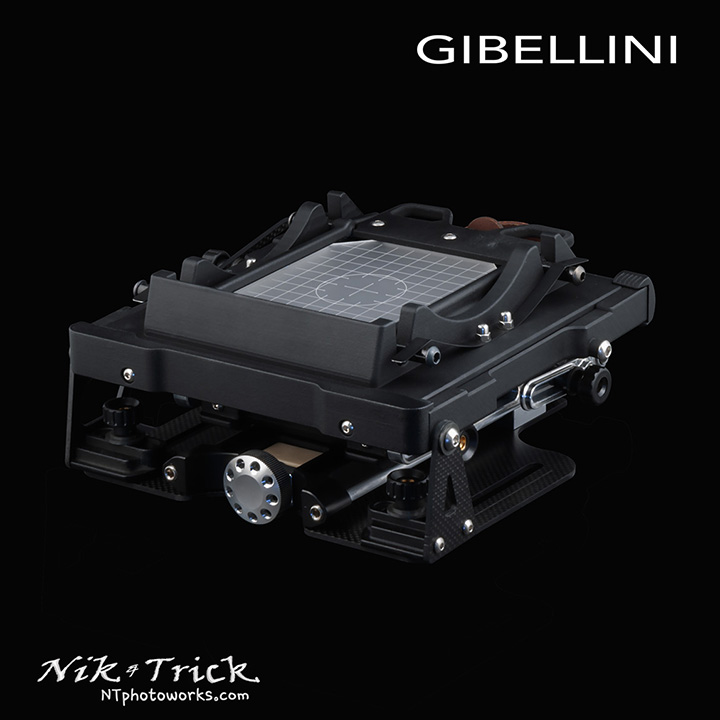

Gibellini TCN45 Customisable 4×5 Field Camera is a Professional folding camera, lightweight made out of Aluminum on slide and front arms, Carbon fiber on bottom plate and rear arm and technopolymer for the front/rear standard.

Possibility to customize with thousand of special coating on technopolymer front/rear standards.

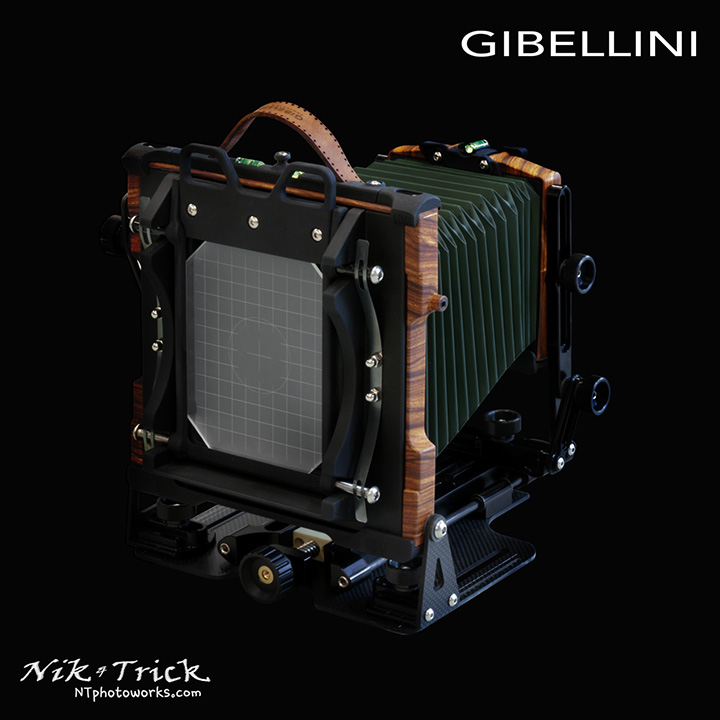

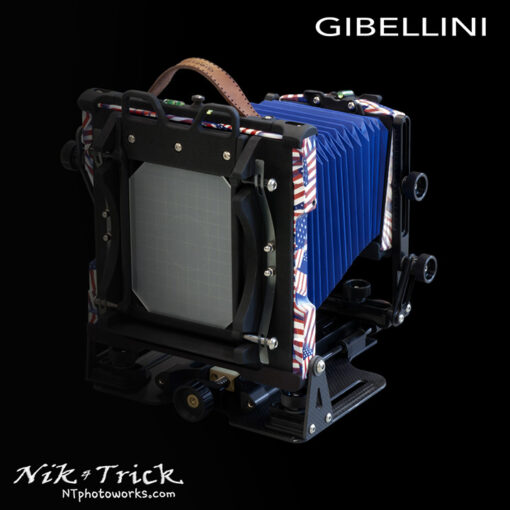

BODY COLOR: Red, Blue, Black, Green, Sand, and customizable with many different special coatings.

BELLOWS COLOR: Red, Blue, Black, Green, Sand, White

EXTERNAL DIMENSIONS: 260x220x80 mm
WEIGHT: 1.9kg
MIN/MAX extension bellows: 50 – 340 mm
MIN/MAX with bag bellows: 0 – 400 mm
FRONT RISE/FALL: + 55 / – 35 mm
FRONT SHIFT: +/- 25 mm
FRONT TILT: +/- 45° limited by bellows
FRONT SWING: +/- 45°

REAR RISE/FALL: 0 mm
REAR SHIFT: +/- 15 mm
REAR TILT:– 20° / + 90° (closure direction)
REAR SWING: +/- 45°
LENSBOARD: Gibellini Size (adapter available)
TRIPOD MOUNT: 3/8” and 1/4 “
CAMERA BACK: horizontal/vertical positioning
HOLDERS: compatibility with all commercial and Gibellini
MECHANISMS: Aluminum/Carbon
