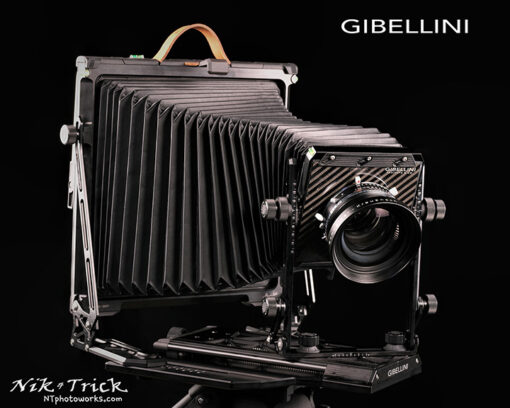

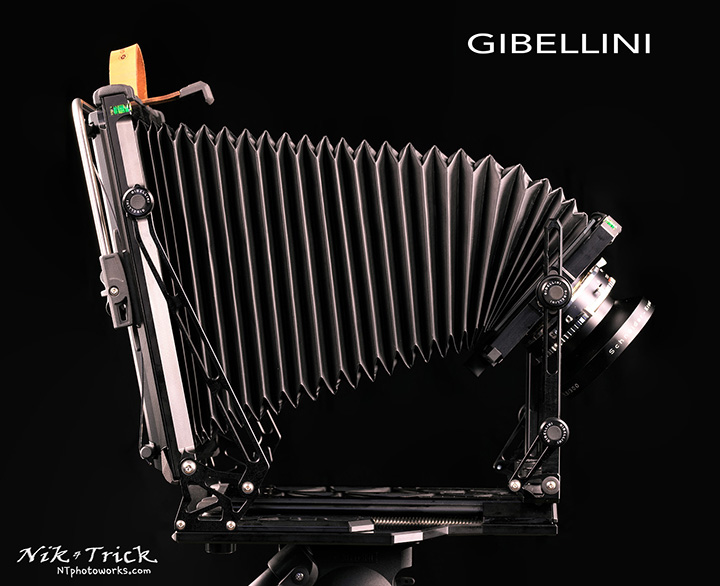

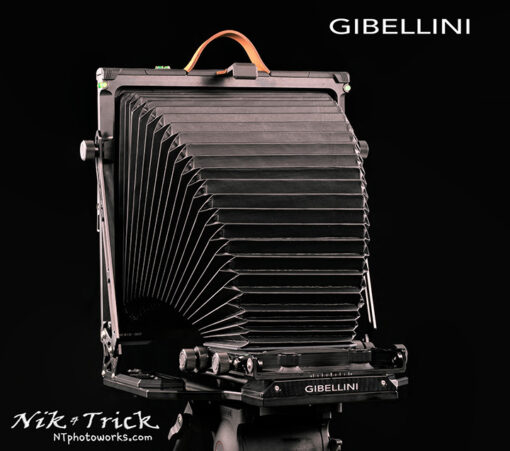

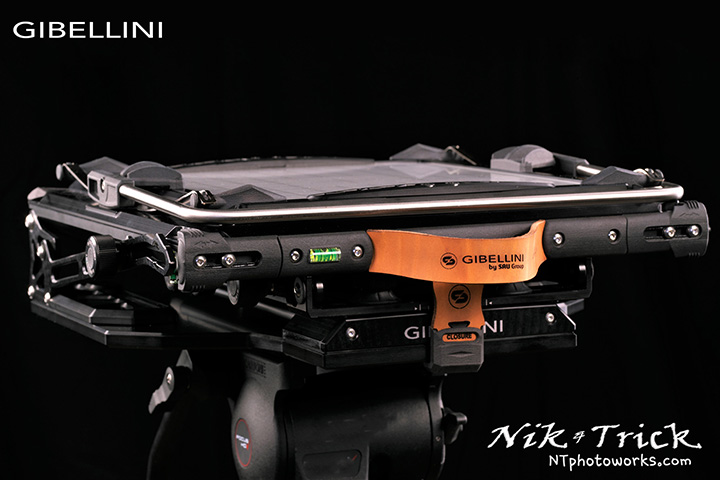

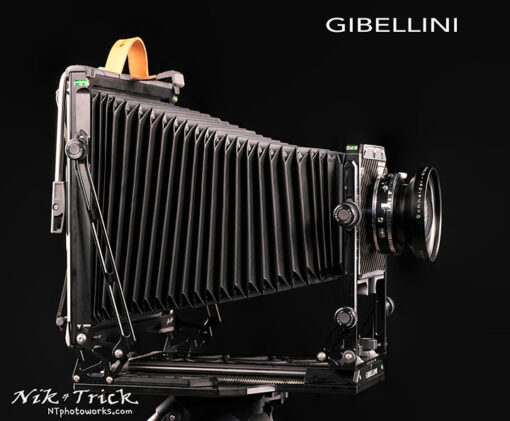

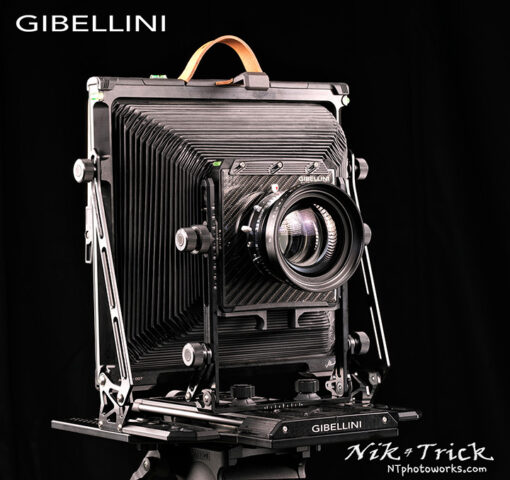

Gibellini AG810 Large Format 10×8 Field Camera

Gibellini AG810 Large Format 10×8 Field Camera comes entirely Aluminum CNCed which makes for a resilliant, sturdy and precise camera.

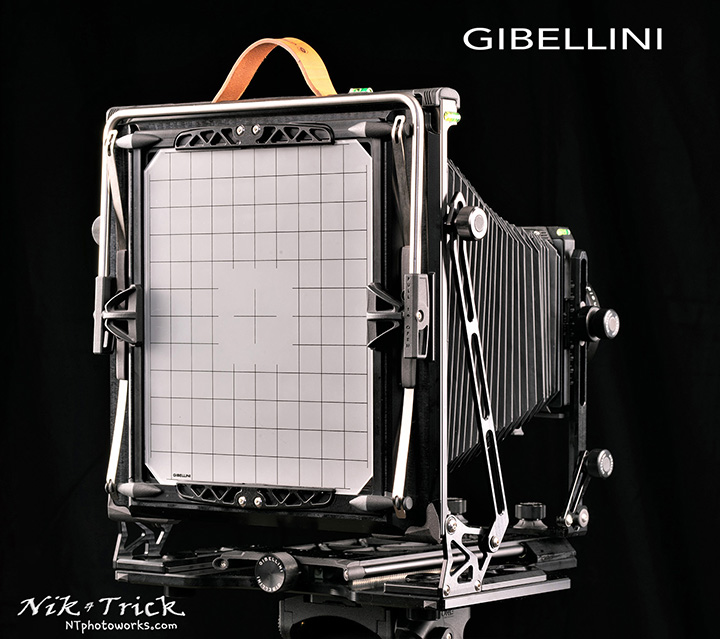

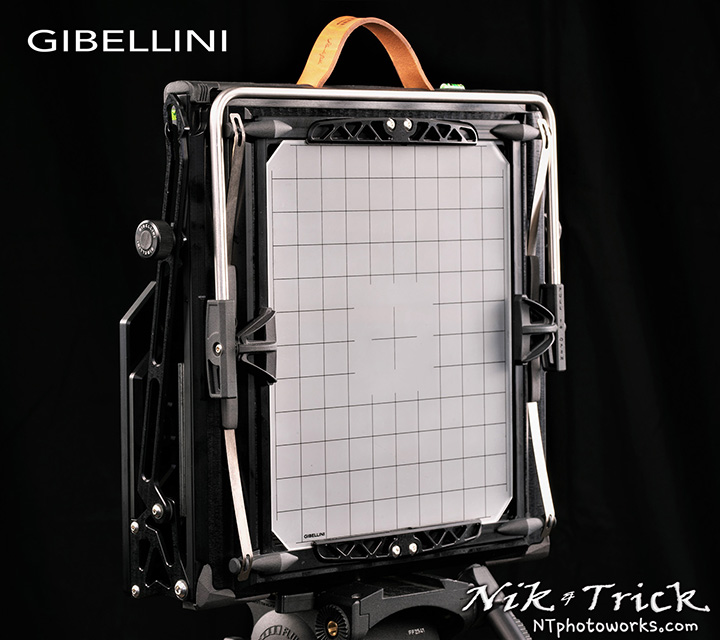

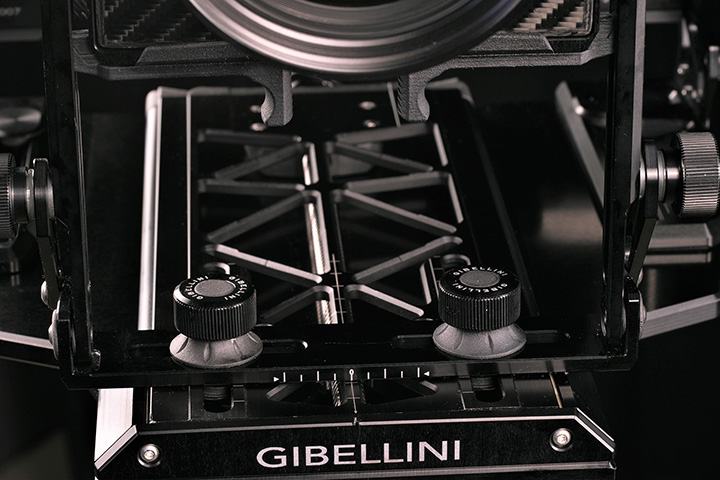

Front frame full aluminium. Auto zero positioning on front and rear movements. Bright groundglass (real optical glasses) included and has a new bail back mechanism to load the film holders easily.

BODY COLOUR: customizable and BELLOWS COLOUR: Red, Blue, Black, Green, Gold, White, Titanium

BELLOWS COLOUR: White, black, red, blue, green, sand

EXTERNAL DIMENSIONS: 330x320x100 mm
WEIGHT: 4.1kg
MIN/MAX extension bellows: 30 – 640 mm
MIN/MAX with bag bellows: 0 – 400 mm
FRONT RISE/FALL: + 35 / – 50 mm
FRONT SHIFT: +/- 20 mm
FRONT TILT: +/- 45° limited by bellows
FRONT SWING: +/- 45°

REAR RISE/FALL: 0 mm
REAR SHIFT: 0 mm
REAR TILT:– 20° / + 90° (closure direction)
REAR SWING: +/- 45°
LENSBOARD: Sinar compatibility (139x139mm)
TRIPOD MOUNT: 3/8” and 1/4″
CAMERA BACK: horizontal/vertical positioning
HOLDERS: compatibility with all commercial and new Gibellini FH810
MECHANISMS: aluminum
