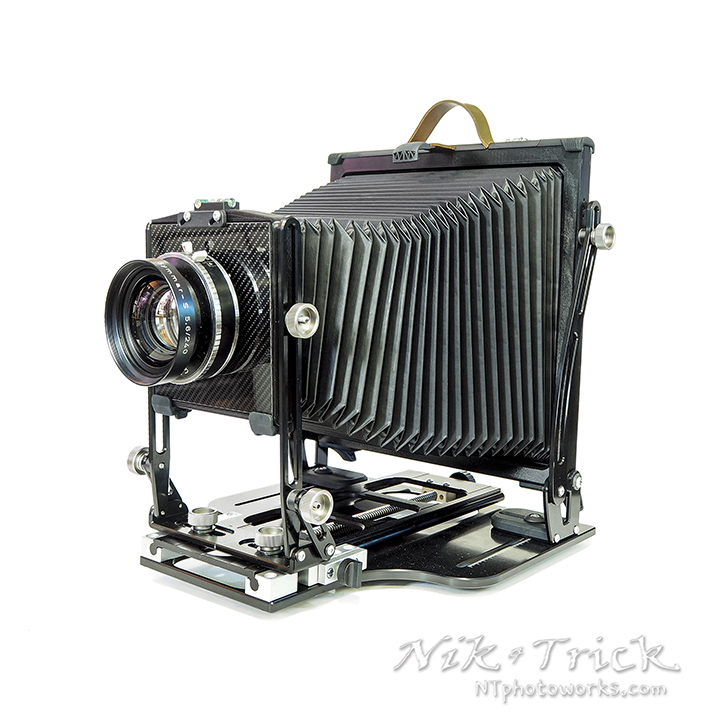

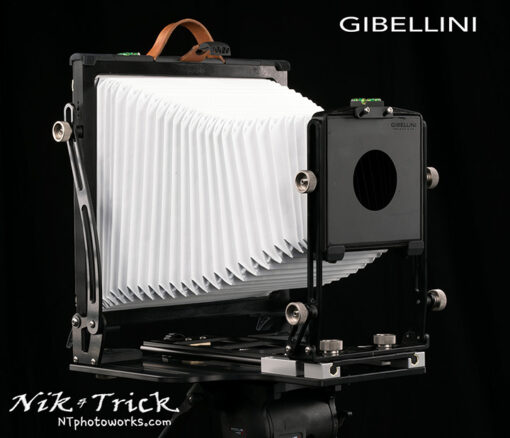

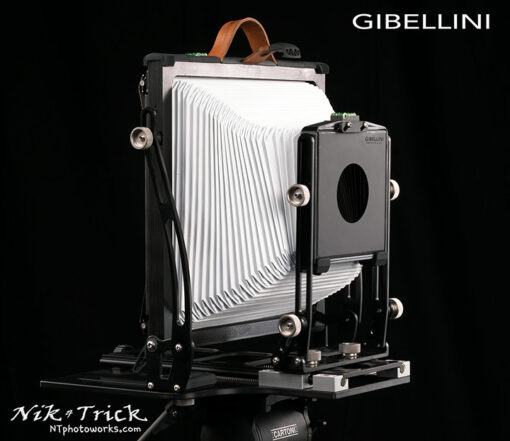

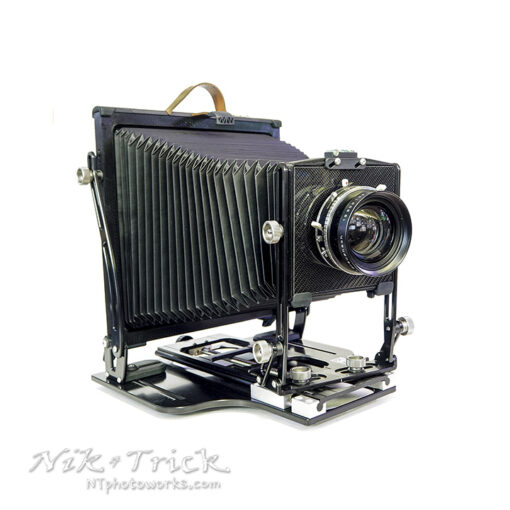

Gibellini Bellatrix Budget 10×8 Field Camera can be ordered in black or white with a choice of White, black, red, blue, green, sand coloured bellows
Lens and lens board NOT included in price
EXTERNAL DIMENSIONS: 340x340x130 mm
WEIGHT: 3.4kg
MIN/MAX extension bellows: 30 – 580 mm
MIN/MAX with bag bellows: 0 – 400 mm
FRONT RISE/FALL: + 65 / – 55 mm
FRONT SHIFT: +/- 45 mm
FRONT TILT: +/- 45° limited by bellows
FRONT SWING: +/- 45°
REAR RISE/FALL: 0 mm
REAR SHIFT: +/- 45 mm
REAR TILT:– 20° / + 90° (closure direction)
REAR SWING: +/- 45°
LENSBOARD: Sinar compatibility (139x139mm)
TRIPOD MOUNT: 3/8” and 1/4″

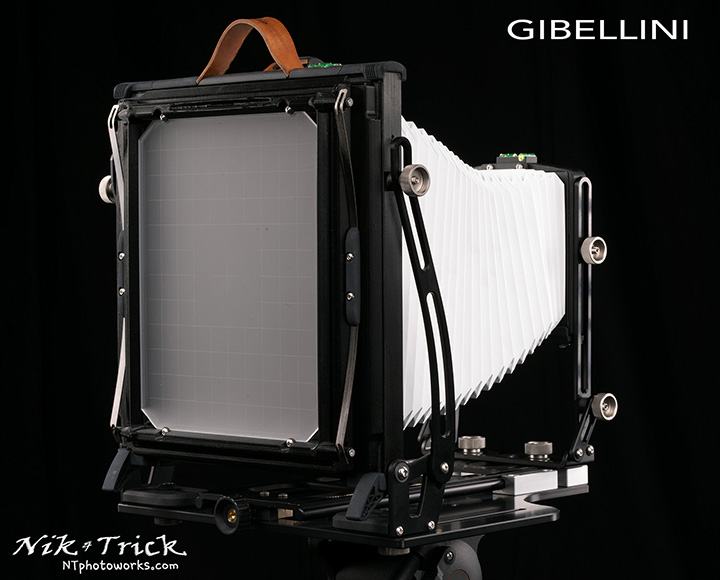

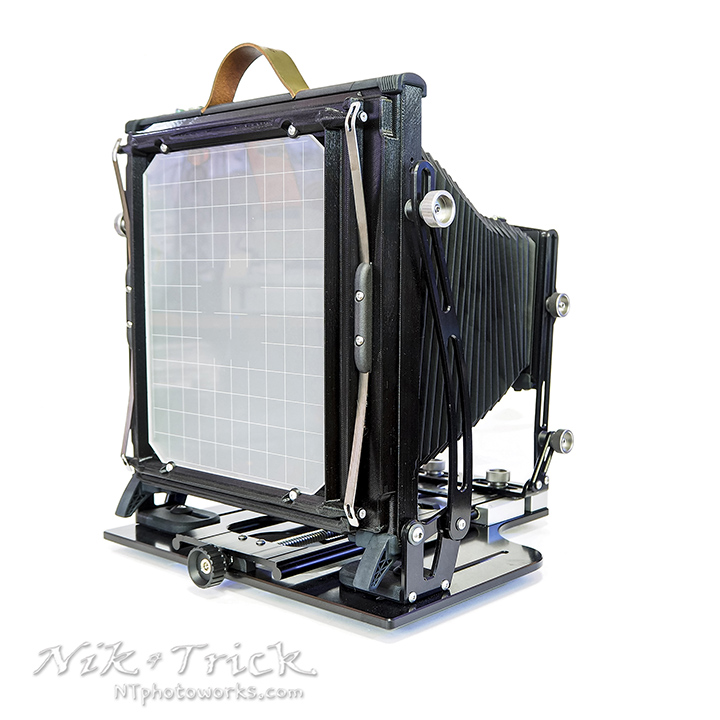

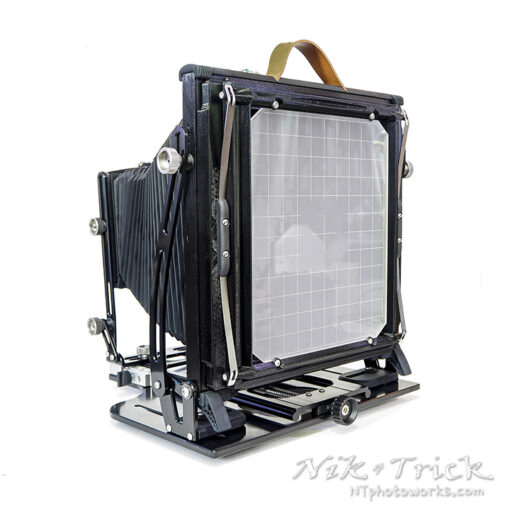

CAMERA BACK: horizontal/vertical positioning
HOLDERS: compatibility with all commercial and new Gibellini FH810

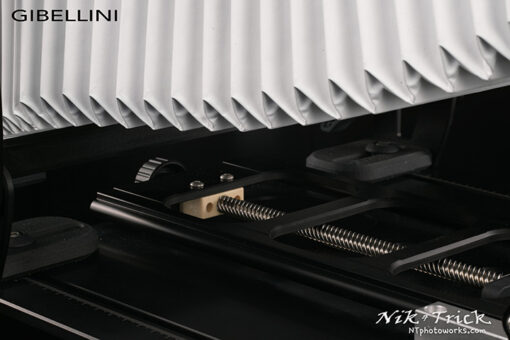

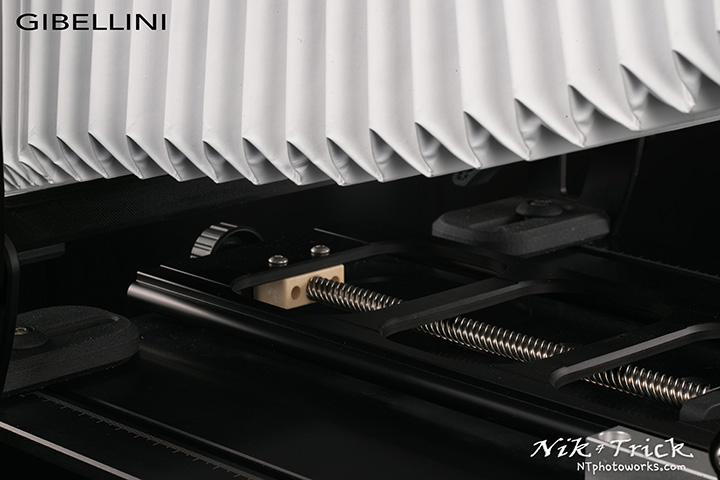

MECHANISMS: Plastic and aluminum
